1988 Pontiac Fiero

Vehicle Overview

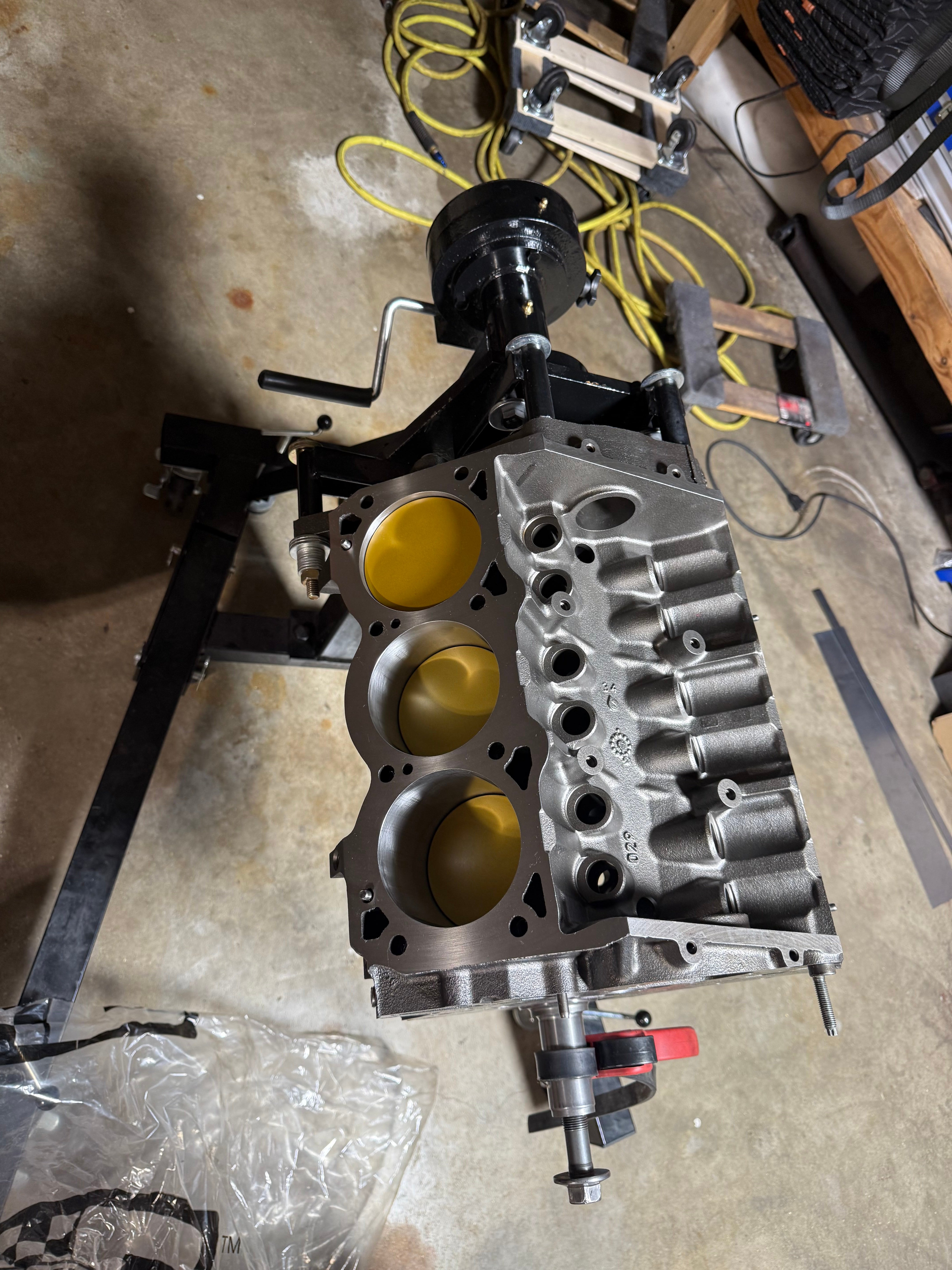

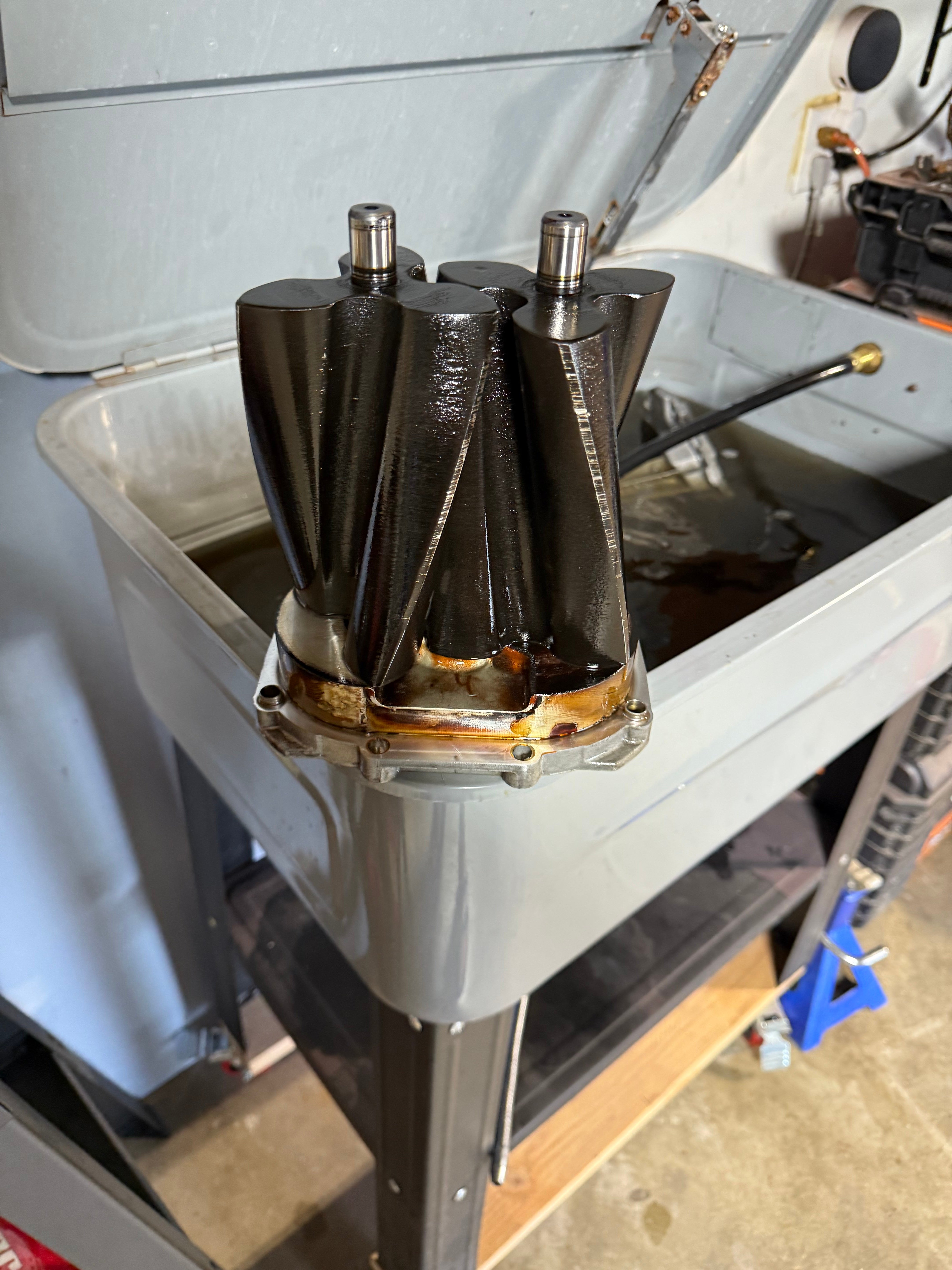

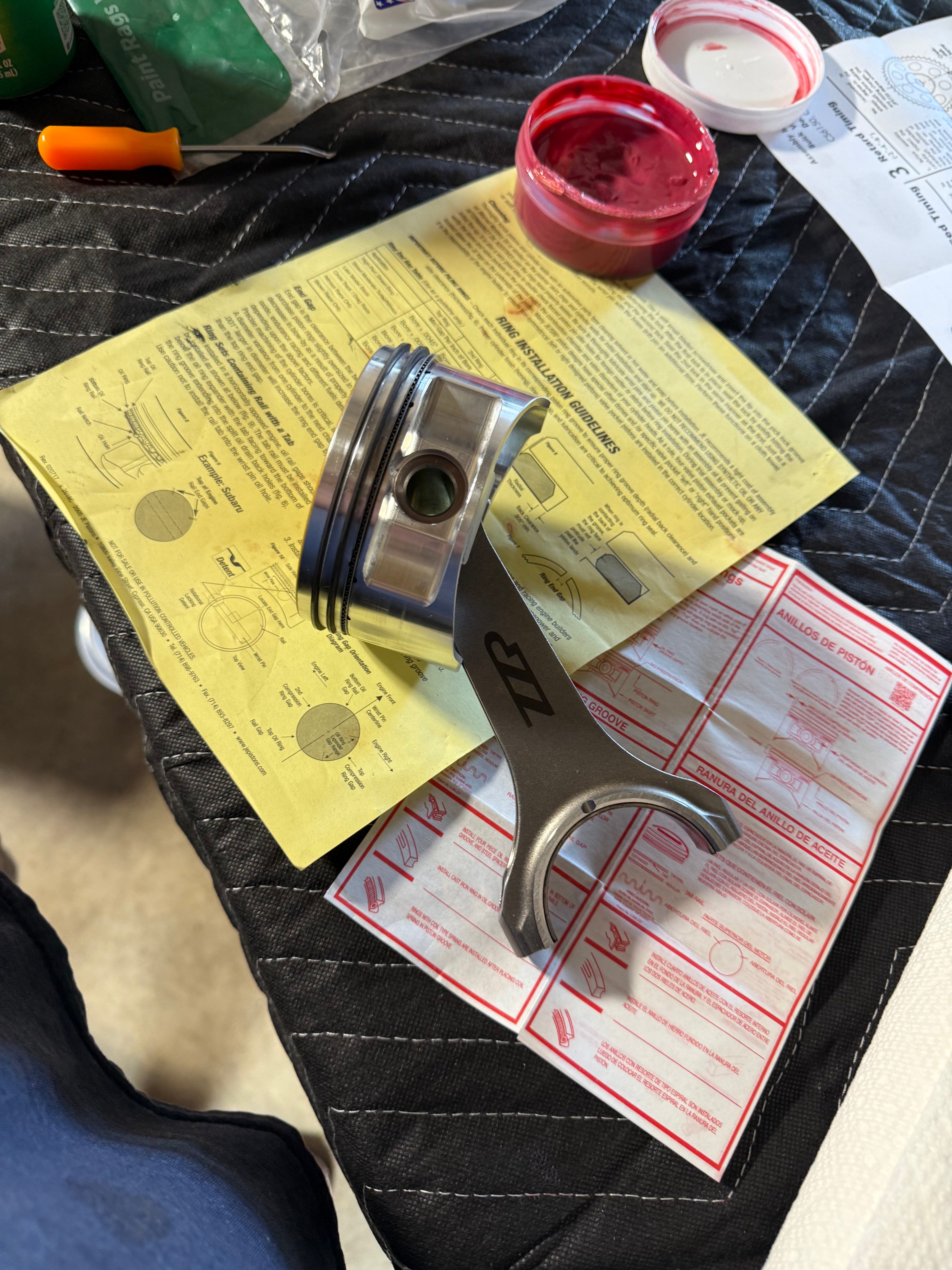

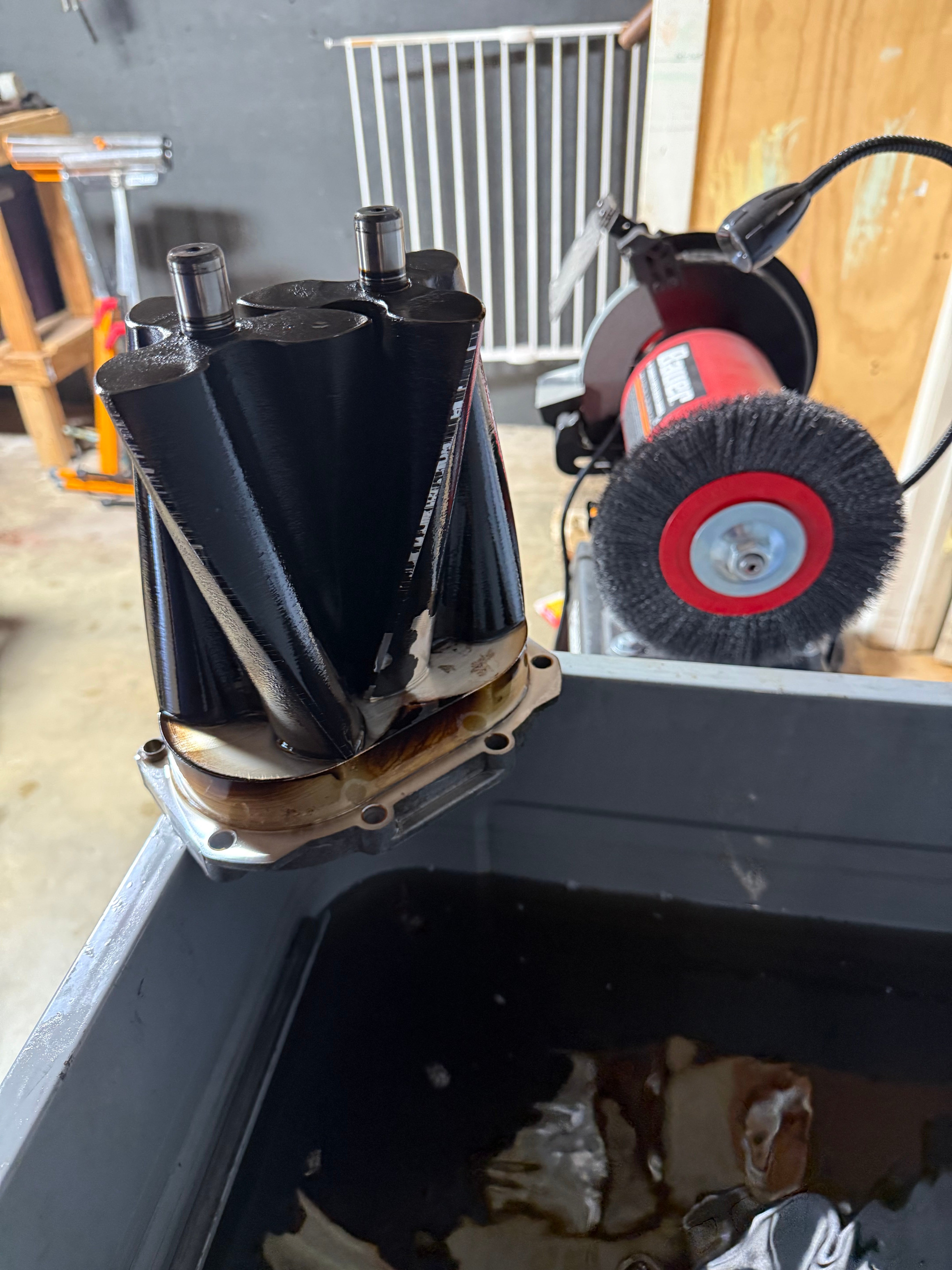

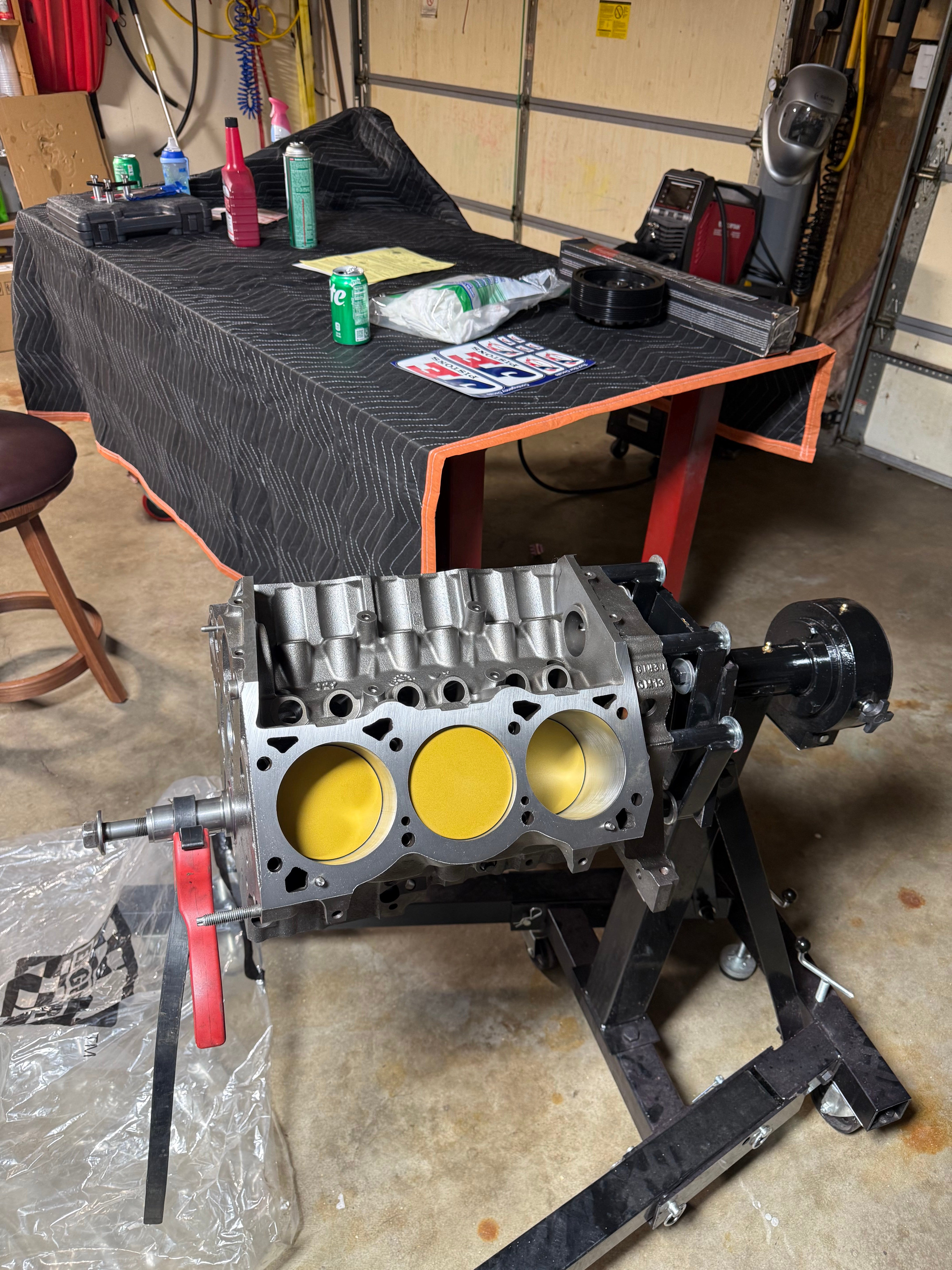

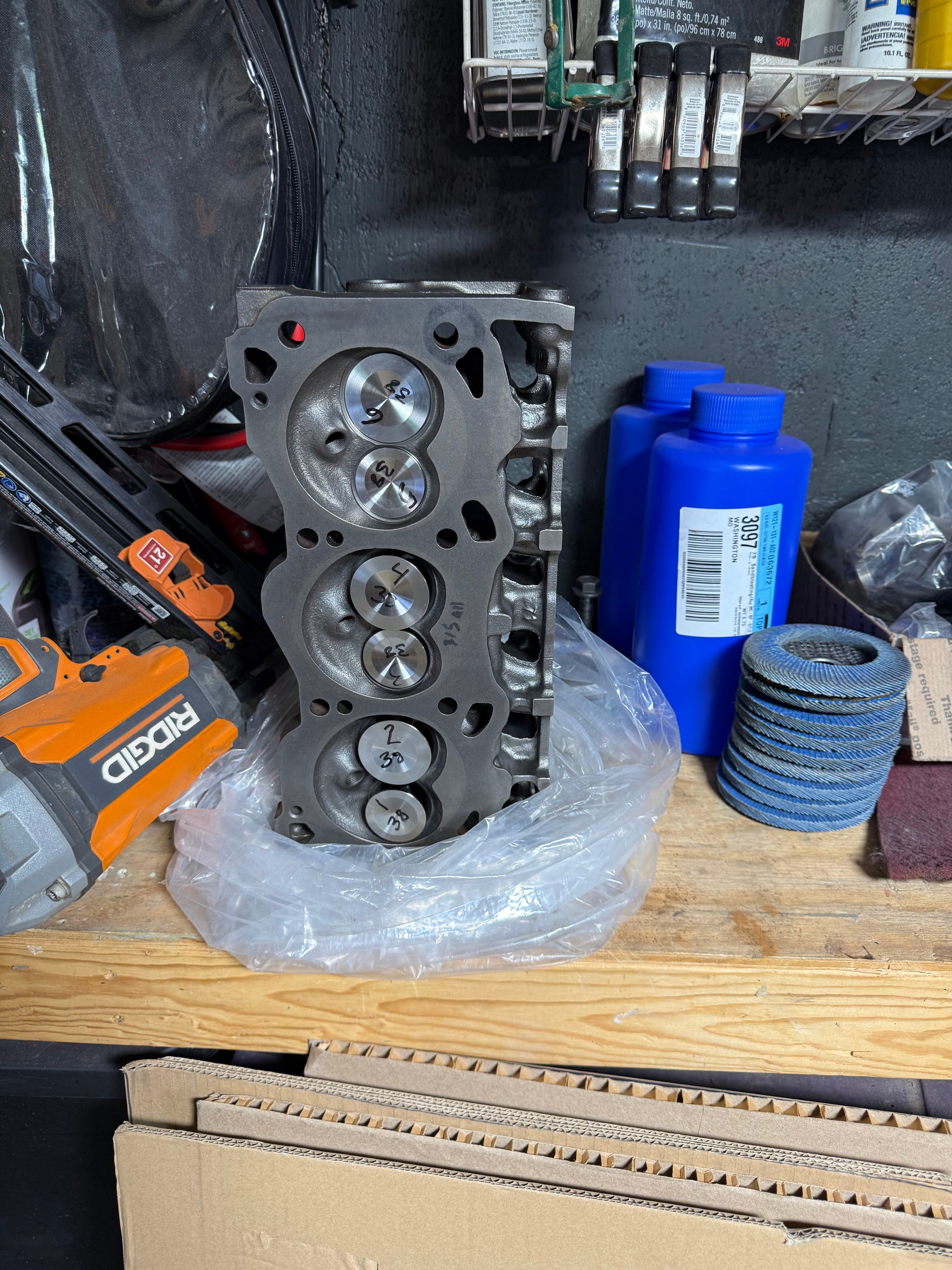

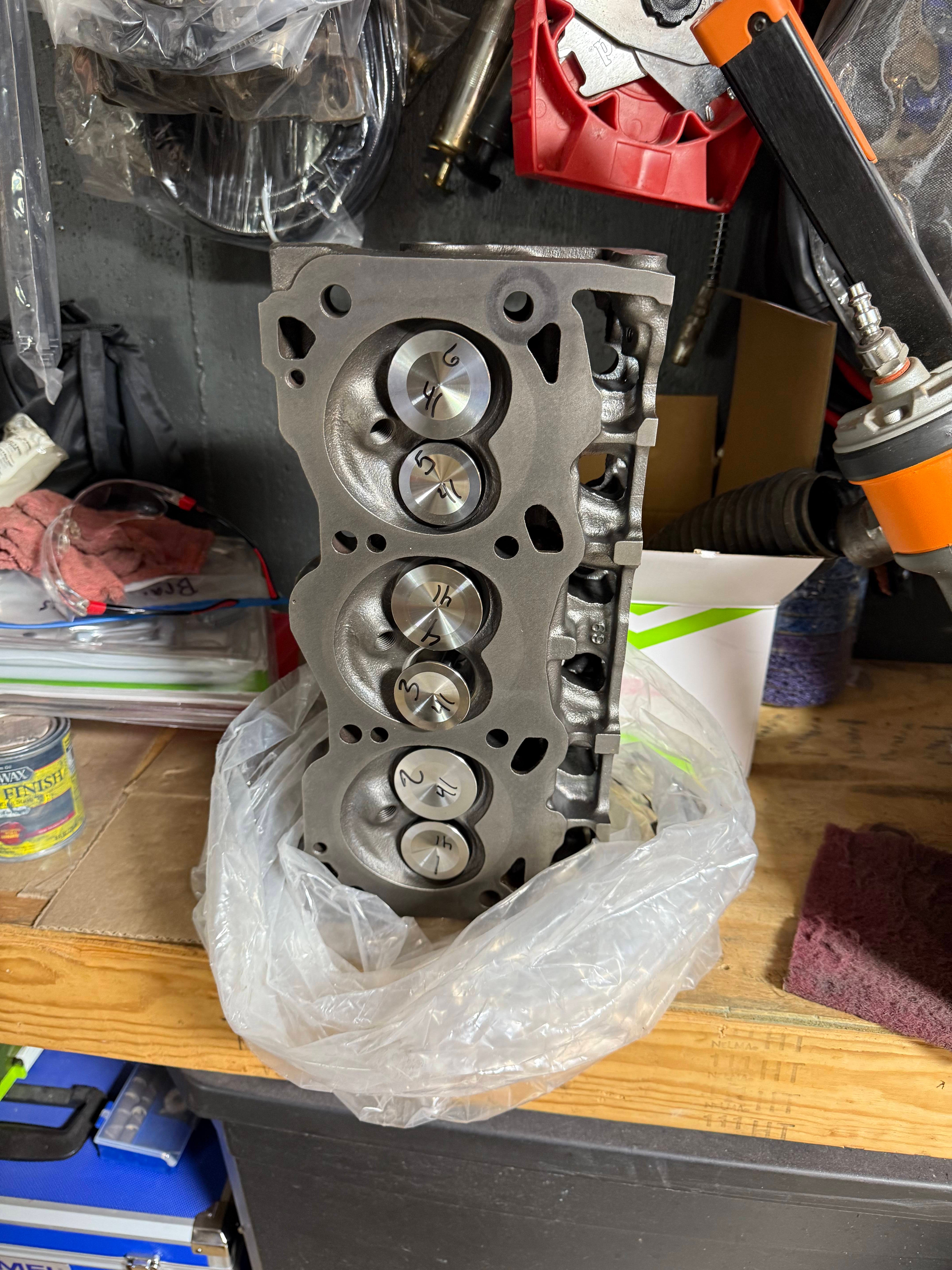

Fiero Mods Engine ZZP H-Beam rods JE 9.9:1 pistons 0.020 oversized ZZP XP-RPM cam ZZP Double roller timing chain kit with tensioner ZZP LS lifters ZZP lifter tray ZZP 1.65 rockers 150# honeycomb springs ZZP light weight valve retainers ZZP 1.84 Intake valves ZZP 1.57 Exhaust valves ZZP valve seals Bosh 80# injectors ZZP 2.5” intercooler ZZP Oil volume kit ZZP fuel rails Ported series 2 heads to 240 CFM Ported series 3 lower intake Gen 5 supercharger rebuilt with ZZP coupler (not ported) ZZP 2.6” pulley ZZP belt wrap kit ZZP 8 rib pulley kit ZZP 8 rib harmonic balancer ZZP 180 degree thermostat and housing ZZP electric high output water pump ZZP coolant elbows MSD LS1 coils MSD plug wires Air conditioning delete Power steering delete Counterbalance shaft delete EVAP delete fuel tank vent rounded to intake 75mm North Star throttle body ZZP North Star adapter kit ZZP power log headers ZZP equalizer down pipe and crossover MechMan 240 amp alternator Spec Aluminum flywheel ARP flywheel bolts ARP main studs ARP head studs Mains and cam have been line bore ZZP main bearing King rod and cam bearings Cylinders have been bored 0.020 over Deck has been milled 0.010 Heads have been milled 0.005 Holley Dominator ECU Holley EFI 5 Bar MAP Holley EFI 12.3" Pro Dash Holley EFI Oxygen Sensor 554-155 x 2 Transmission 2006 Pontiac G6 F40 transmission First Gear: 3.77:1 • Second Gear: 2.04:1 • Third Gear: 1.32:1 • Fourth Gear: 0.95:1 • Fifth Gear: 0.76:1 • Sixth Gear: 0.62:1 • Reverse: 3.54:1 • Final Drive Ratio: 3.55:1 New throwout bearing from spec Spec stage 3+ clutch Fiero 2.5” exhaust no catalytic converter with high flow muffler and quad exhaust tips Champion 3 core radiator Spal duel electric radiator fans Aeromotive 11569 fuel pump Aeromotive fuel pressure regulator 13101 Return style fuel system E85 fuel 13” corvette/viper big brake kit Wilwood brake master cylinder Wilwood proportioning valve JEGS vacuum reservoir Electric vacuum pump Performance brake booster Wilwood clutch master cylinder KYB shocks and struts Rear coil over kit

Vehicle Story
