Build Points
23
- Color: TEAL
- Horsepower: 350
- Drivetrain: RWD
Vehicle Overview

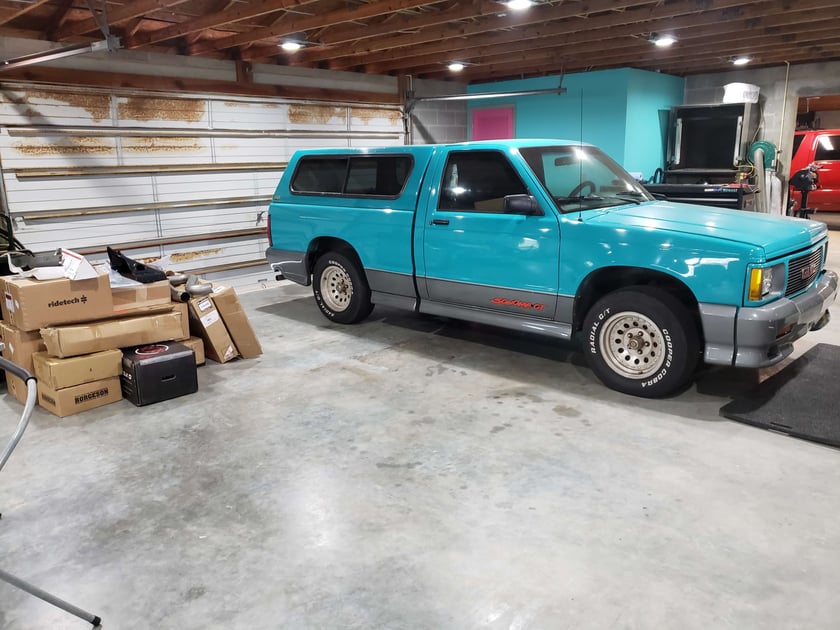

One of 48 ever built in Teal. (Total SGT production was 806). The perfect platform to build an LS powered S10 shop truck, to use, drive and enjoy on a regular basis, but could be taken to a road course any time. 4.8LS with BTR stage 4 cam. Built 4l60e transmission. Current performance wiring harness. Full assortment of Holley swap components, from oil pan, mid mount accessories, ac box, frost bite radiator and more. Borgeson short ratio steering box. Ride Tech coilover suspension with tubular arms and 4 link rear. 8.5" rear end, with Eaton true trac, 3:42 ratio. Corvette C6 Z06 brakes, 6 piston 14" rotors upfront. 4 piston, 13.5" rotors out back. Custom Sportmachines Super Stock wheel set. Stainless brake lines. Stainless six point hardware on the entire truck. More details that I can remember, and its currently under construction and can be seen on our social media pages #sportmachines #radsgt
Completed Modifications
Frostbite "Direct Fit" Fan Shroud (2 x 12 openings) - for FB308 radiator
1982-1993 S10 (2wd), 1982-2000 S10 (4wd), 1984-1990 Corvette with GM LS engine Swap 4.8/5.3/6.0/6.2/7.0L (3-Row) NOTE: Inlet and Outlet fittings are available separately in three different sizes listed under the Service Parts Tab based on your hose size needs.
-16AN ORB Threaded Radiator Inlet/Outlet hose fitting 1.50" for Frostbite Engine-Swap Radiators
1982-04 GM S-10/Sonoma LS Swap Engine Mounting Brackets
SPAL® 11.00" Inch Electric Fan Puller Style Low Profile 844 CFM 10 Curved Style blades
SPAL® Electric Fan Jumper Wiring Harness Pigtail for SPAL® fans with AMP style connector
1982-04 GM S-10 / Sonoma 2WD LS Swap, T56 / 4L60E / 4L70E / 4L75E / TH400 Transmission Crossmember
LS Oil Dipstick and Tube Kit for use with LS Retro-fit Oil Pans
LS Engine Drive includes SD7 A/C Compressor, Alternator, P/S Pump, Tensioner, Crank Damper, Belt, & Pulleys
1982-2004 GM S-10/Sonoma LS Swap Exhaust Manifolds, 2.50 inch Outlet - Natural Cast Finish
1982-2004 GM S10 LS swap manifold adapters connect 71223026HKR manifolds to our 3" year specific exhaust systems
1982-93 GM S-10/Sonoma 2WD LS Swap Exhaust System, Dual 3 inch In/Single 3 inch Out - 409SS Natural Finish
1982-93 GM S-10/S-15/Sonoma A/C Evaporator Side Cover
Future Plans
Finish and Drive it!
