Vehicle Overview

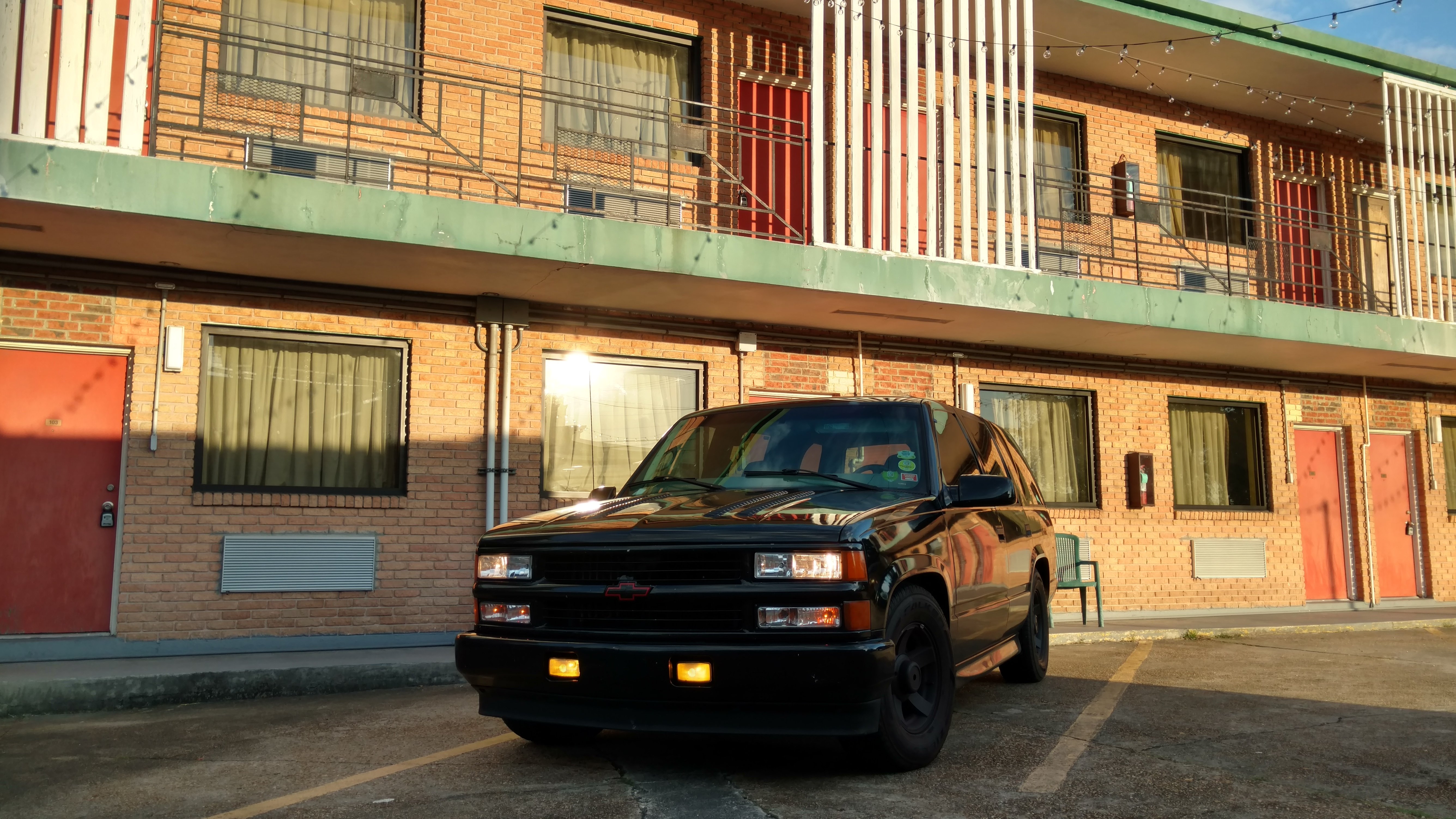

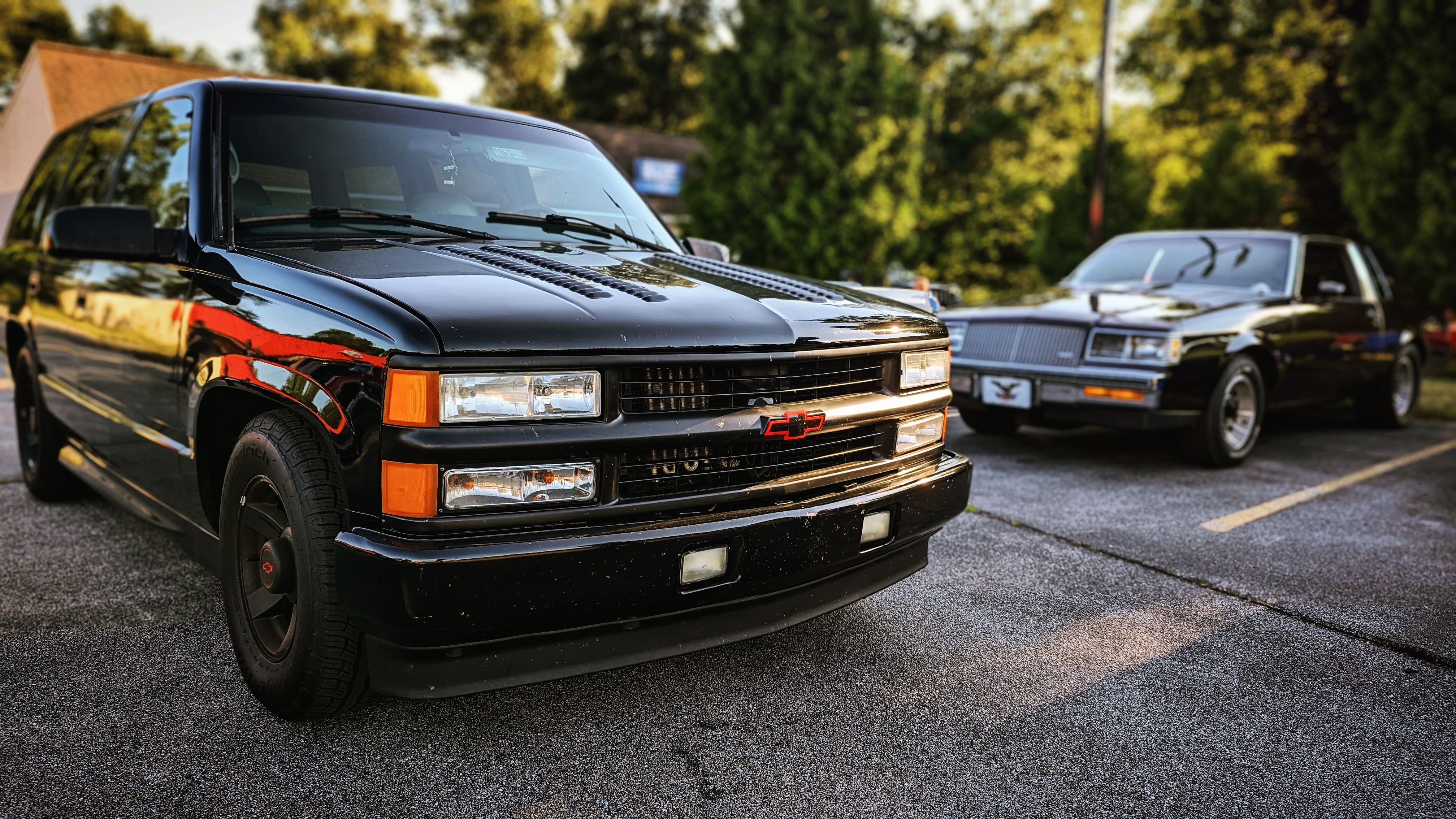

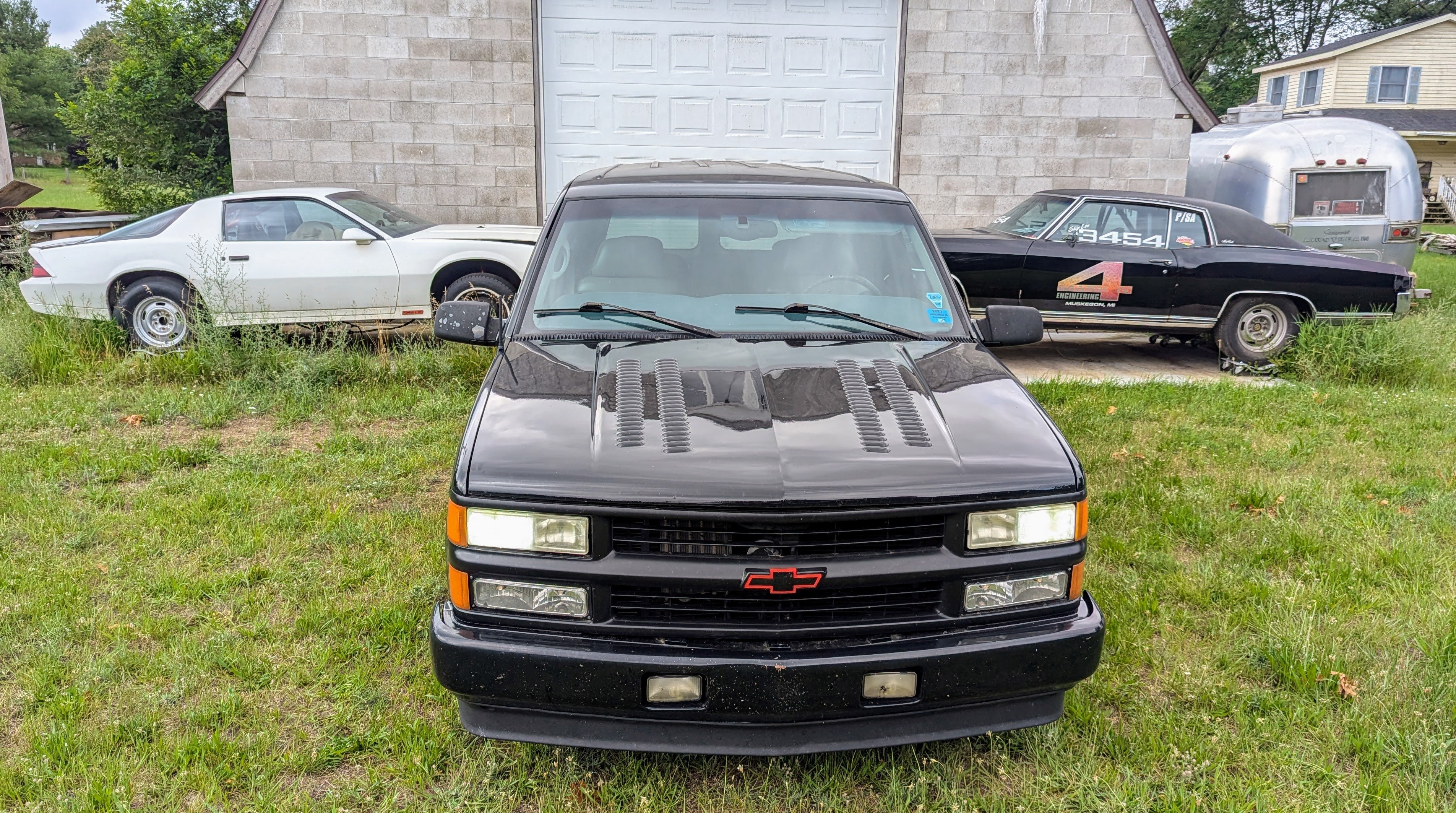

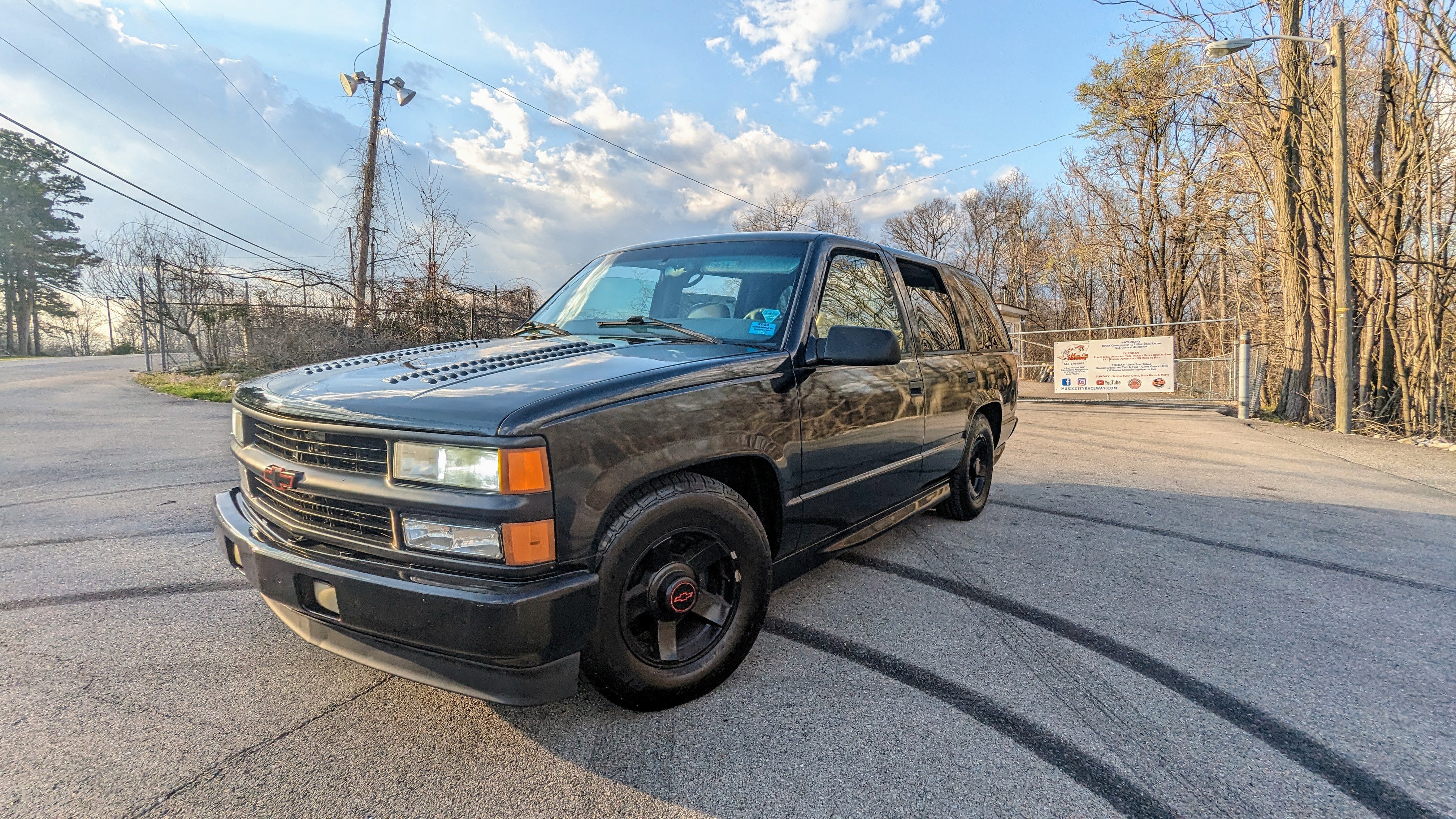

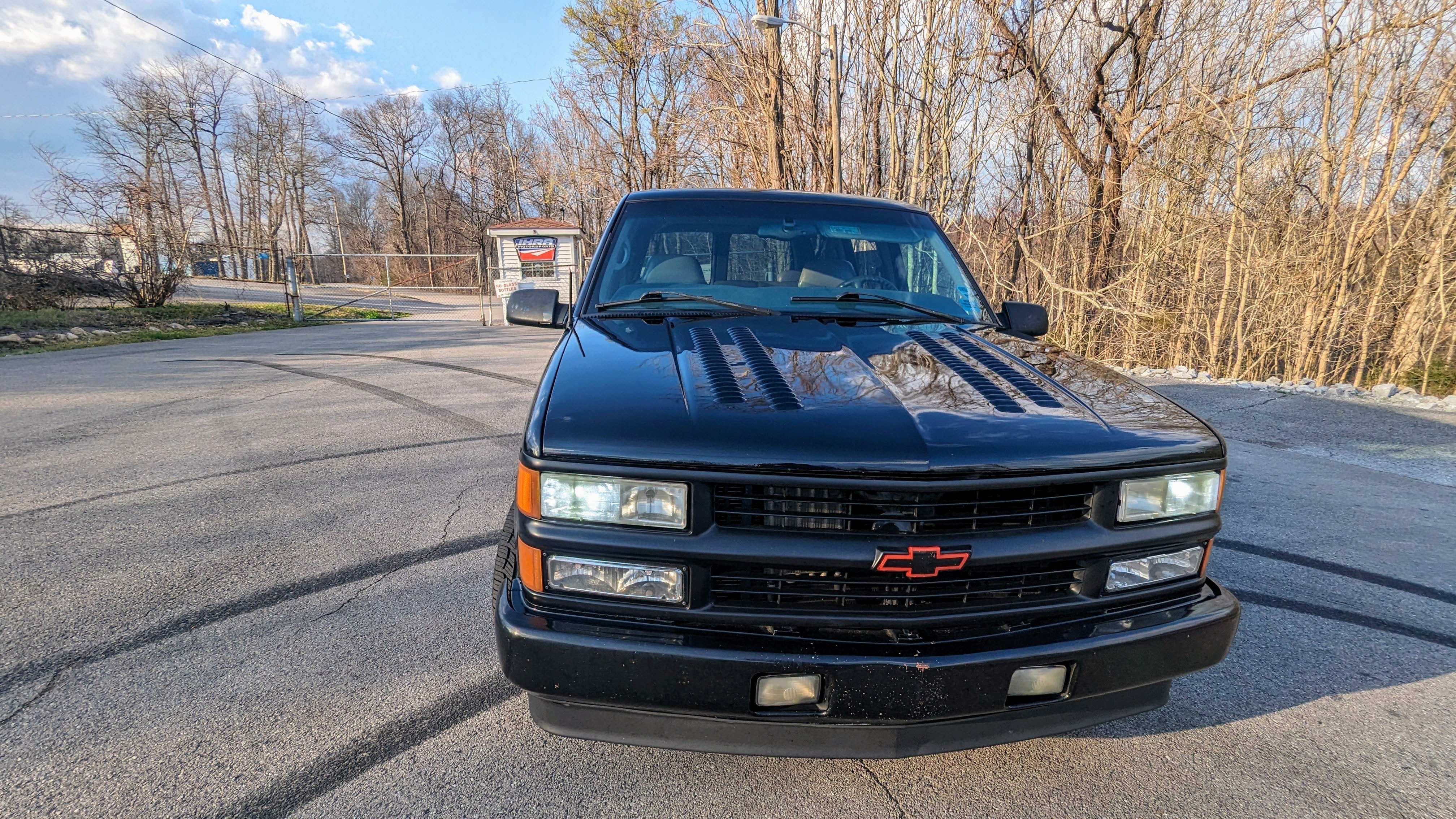

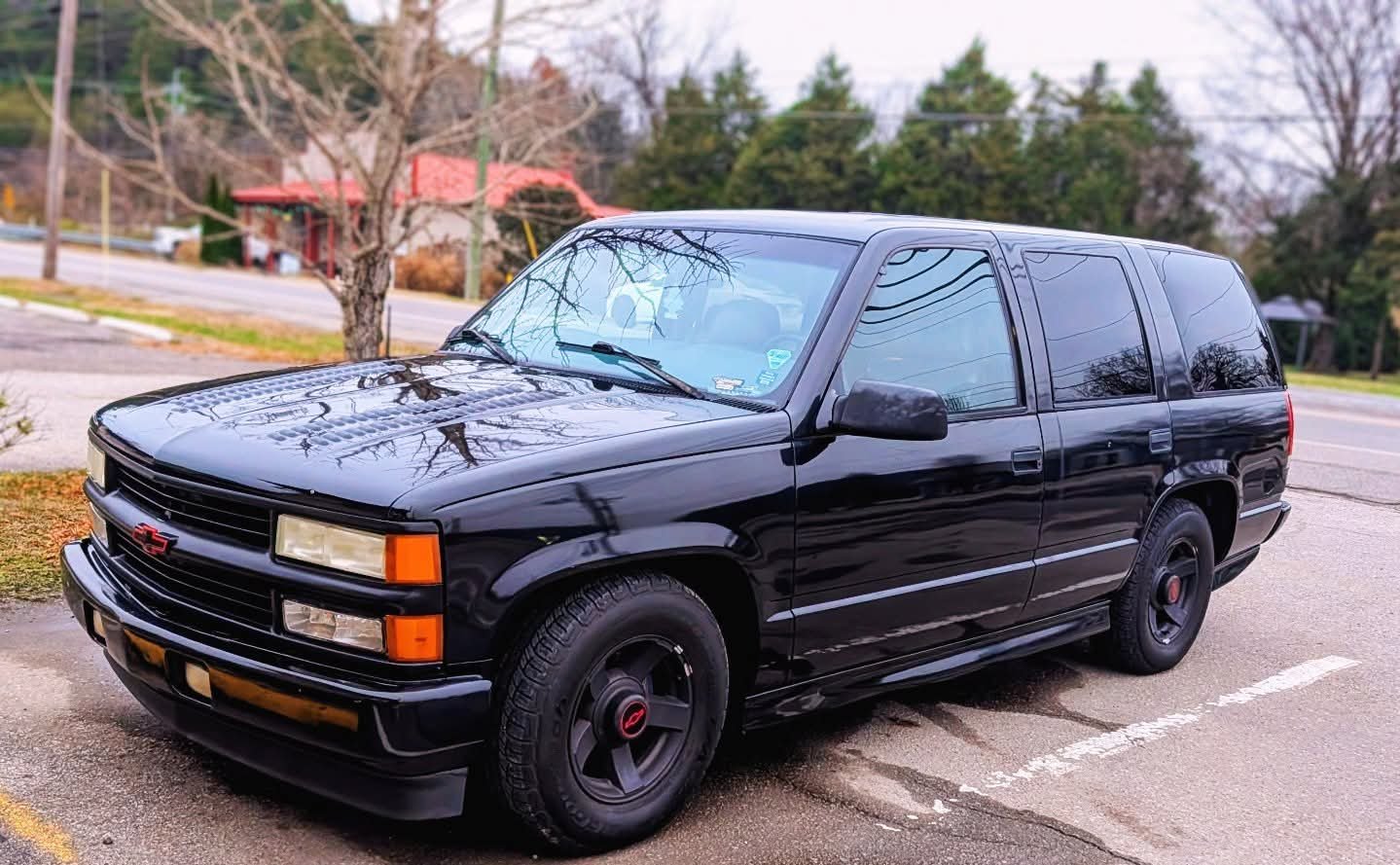

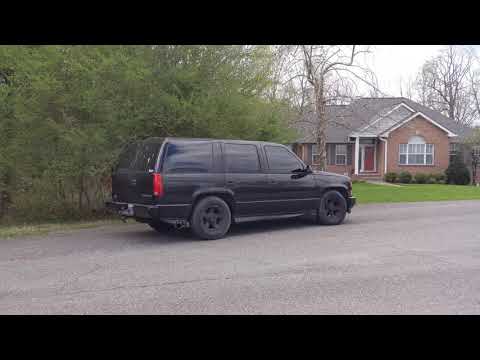

2000 Tahoe Limited The 2000 Tahoe Limited (and AWD Z71) were the last of the OBS/GMT400 after they changed over to the GMT800 for trucks in 1999 and Tahoes/Suburbans in 2000. The Tahoe Limited was basically a civilian version of the OBS 4 door RWD police Tahoe. It only came in black with blacked-out trim and grill, lowered an extra inch with a bigger swaybar, Bilstein shocks, ground effects skirts, and 16" aluminum Ronal wheels (had mine coated black. Only a couple thousand were made. It was supposed to be called the Tahoe SS but I guess it was an insurance issue. Came with a SBC Vortec 5.7L or 5.0L engine. But I bought this one and had some issues with the engine and made plans to LS swap it. ----------------------------------- - 6.0L L96 LS Engine - 823 LS3/L92 Heads with new BTR springs and trunion upgrade - DoD & VVT deleted - Lunati Voodoo Cam Specs: Hydraulic Roller Cam. Good idle, excellent low end torque and mid range HP. Advertised Duration (Int/Exh): 262/273 ;Duration @ .050 (Int/Exh): 212/223 ;Gross Valve Lift (Int/Exh): .530"/.549" ;LSA/ICL: 112/108 ;Valve Lash (Int/Exh): Hyd/Hyd ;RPM Range: 1600-6200 Howell EFI Wiring Harness and Stock ECU/TCU programmed for my cam and gear ratio (will further dyno tune once I swap gears) E3 Race Coils, Plugs & Wires Holley Premium Mid Mount accessory drive kit with ATI balancer (awesome setup) Electric Fan from a 2009 Tahoe Flowmaster Delta Force Air Intake Builder Kit ------------------------------- Exhaust Hooker Cast LS Swap Exhaust Manifolds Flowmaster Performance Catalytic Converters Magnaflow 12909 3.5" muffler Flowmaster single 3.5" tailpipe kit and exhaust tip (exits stock location passenger rear) ---------------------------------------------- Driveline 4L80E transmission rebuilt with TransGo shift kit Tampa Torque Converter (2400-2600 stall) TCU programmed by Howell EFI Amalie Dexron VI fluid Hot Shot's Secret Shift Restore/Transmission Stiction Eliminator Driveshaft Shop Aluminum Driveshaft ----------------------------------------- Suspension/Brakes Lowered 2"/3" DJM drop spindles DJM shackles BellTech Nitro Shocks SSBC front brake caliper upgrade SSBC rear disc conversion kit Hawk Pads

Completed Modifications

Engine Parts (2)

Holley Premium Mid-Mount Complete Accessory System
LS Engine Drive includes SD7 A/C Compressor, Alternator, P/S Pump, Tensioner, SFI certified damper w/hard anodized billet crank pulley, Belt, & Pulleys
Part# 20-180
Flowmaster Delta Force Performance Air Intake
Universal 4.00-inch Air Intake System
Part# 615400

Exhaust (4)

Hooker BlackHeart LS Swap Exhaust Manifolds - Natural Cast Finish
Multi-fit - 2.50 in. Outlet - Gen III/Gen IV Chevrolet LS Engine
Part# 8502HKR
Flowmaster Universal Single Tailpipe Kit
3.50-inch Universal 4-piece Aluminized Steel Tubing.
Part# 15903
Flowmaster Pro Series Muffler
Pro Series Muffler - 4.00 Center In / 4.00 Center Out - Moderate Sound
Part# 14020100
Flowmaster Catalytic Converter - Universal - Federal
Catalytic Converter - Universal - 223 Series - 2.50 in. Inlet/Outlet - Federal
Part# 2230125

Future Plans

Turbo Someday? ------------------------ Suspension Upgrades A little bit lower Flip Kit CalTracs Ridetech OBS Shocks ----------- Driveline Rebuild 8.5" 10 bolt Rearend with 4.10 gears, Eaton TrueTrac, Moser axles, and girdle cover Higher Stall Converter Fix & clean up some interior things Good Stereo
